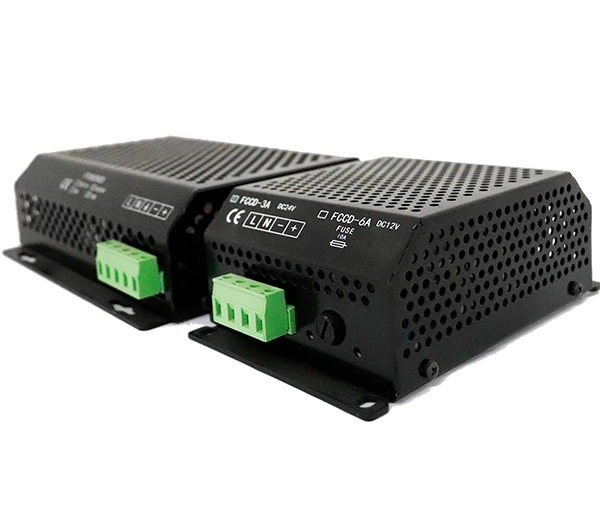

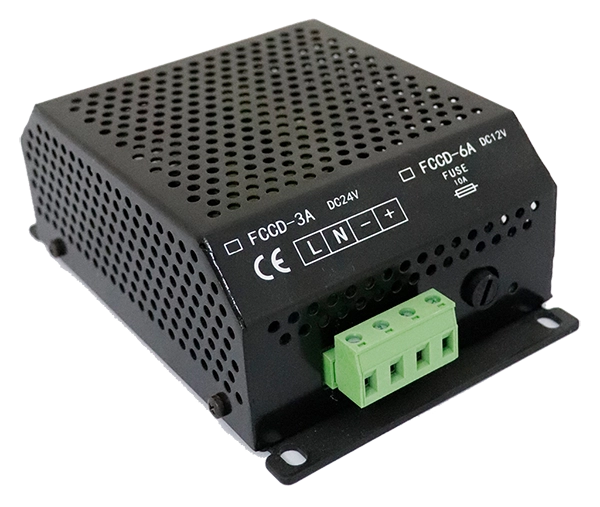

FCCD1003 | Charger

Name: FCCD1003
Rating: 4.5 (100 reviews)

The FCCD1003 series smart charger is specifically designed for the charging characteristics of lead-acid batteries used in engine starting; it is suitable for long-term supplementary charging of lead-acid batteries.

The maximum output current for a 12V charger is 6A, and the maximum output current for a 24V charger is 3A.

Download Instructions

Online consultation

Overview
Features
Parameter
Download
Related Products
Online Consultation

Overview

FCCD1003 Charger

a) Adopts a switching power supply structure, with a wide input AC voltage range, small size, light weight, and high efficiency.

b) Employs a two-stage charging method (i.e., constant current followed by constant voltage) for automatic charging, fully utilizing the battery charging characteristics to prevent overcharging of lead-acid batteries and maximize battery life.

c) Features short-circuit and reverse connection protection.

d) Charging voltage and current values can be adjusted on-site via potentiometer.

e) Status LED display: power indicator, charging indicator.

Features

Parameter

1 Input Characteristics:

Standard operating voltage range: AC 100～250V, maximum permissible operating voltage range: AC 90～280V, frequency

50Hz/60Hz, maximum input current: 2A.

2 Output Characteristics:

12V Charger: Charging current range 4A-6A, error ±2%, factory charging current 6A, maximum output power 85W,

Minimum output voltage 7.5V, no-load output voltage 13.8V, error ±1%, no-load energy consumption<3W

24V Charger: Charging current range 2A-3A, error ±2%, factory charging current 3A, maximum output power 85W,

Minimum output voltage 7.5V, no-load output voltage 27.6V, error ±1%, no-load energy consumption<3W

3 Insulation Performance:Insulation Resistance: Under DC500V for 1 minute for both input and output, and input and casing, insulation resistance RL ≥ 500MΩ.

Insulation Voltage: Under AC1500V 50Hz for 1 minute for both input and output, and input and casing, leakage current IL ≤ 3.5mA.

4. Operating Environment:Operating Temperature: -30～55°C, Storage Temperature: -40～85°C, Operating Humidity: 10%RH～95%RH (non-condensing)

Download

FCCD1003 Smart Charger Chinese Instruction Manual V1.0 522.78 KB Download
