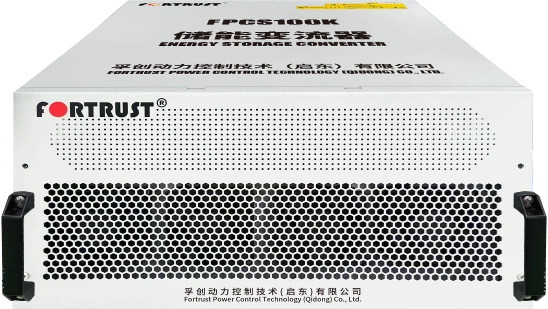

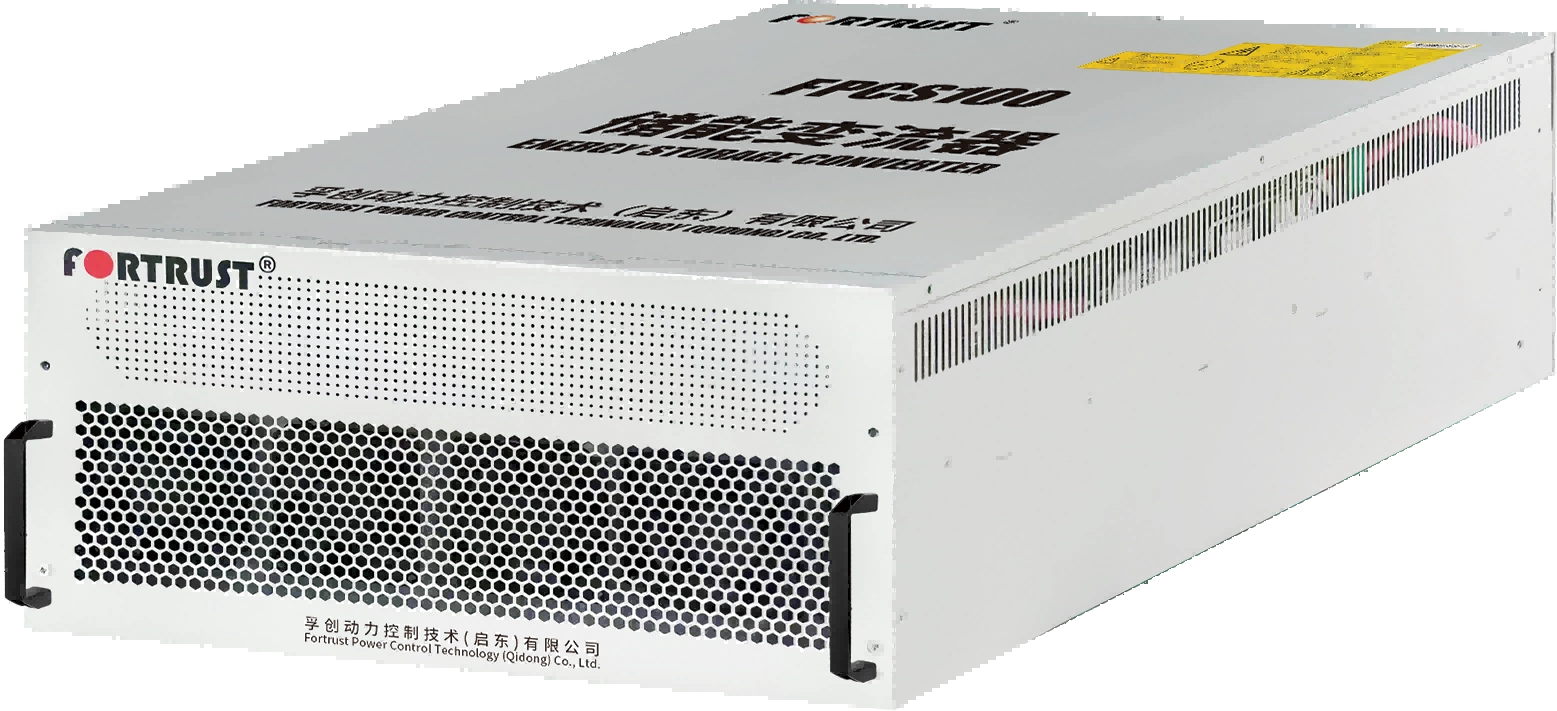

FPCS-100 |

Name: FPCS-100
Rating: 4.5 (100 reviews)

Download Instructions

Online consultation

Overview
Features
Parameter
Download
Related Products
Online Consultation

Overview

The PCS-100 grid-connected energy storage converter is a high-performance, versatile power conversion system designed to provide reliable and efficient energy conversion solutions for a wide range of energy storage applications. Whether for grid dispatch, renewable energy integration, industrial applications, or electric vehicle charging infrastructure, it offers excellent performance and flexibility.

Features

1. Features virtual synchro functionality.

2. Supports parallel operation with diesel generator sets.

3. Wide DC voltage range: 650-1000V.

4. Compatible with air-cooled/liquid-cooled battery systems and various Ah battery systems.

5. Modular design, easy to install and maintain; 99% online rate for energy storage systems.

6. Solves three-phase power imbalance problems.

7. Features low-order harmonic mitigation.

8. Features active/reactive power four-quadrant regulation.

9. Supports constant power, constant current, and constant voltage control.

Parameter

Parameter categories	Parameters	Parameter value
AC parameters	Rated AC power	100kVA
	Wiring method	Three-phase four-wire / Three-phase three-wire
	AC overload capacity	110kVA
	Alternating current	0-151.6A
	Permissible grid voltage	380/400(-15%~15%)Vac
	Permissible power grid frequency	50/60(-2.5~2.5)Hz
	Total current harmonic distortion rate	≤3%
	Power factor	0.99/-1~1
DC parameters	Maximum DC power	110kW
	DC voltage range	650V-900V
	DC current	0-158.7A
	Voltage regulation accuracy	≤±1%
	Steady flow accuracy	≤±1%
System parameters	Maximum conversion efficiency	98.5%
	Dimensions (width × height × depth)	444×220×720 mm
	Weight	48.6kg
	Noise	<80dB
	Protection level	IP20
	Allowable ambient temperature	-20~60℃ (derating above 50℃)
	Cooling method	Air-cooled
	Permissible relative humidity	0~95%(No condensation)
	Permissible altitude	3000m (Derating greater than 3000m)
Communication parameters	Communication interface	RS485, Ethernet, CAN
	Communication Protocol	Modbus TCP/RTU ,CAN2.0
	BMS Access	Support
