1. Reads diesel engine speed, water temperature, oil temperature, oil pressure, and oil level from the ECU or analog input via the CAN communication interface, and implements parameter over-limit alarm protection function.

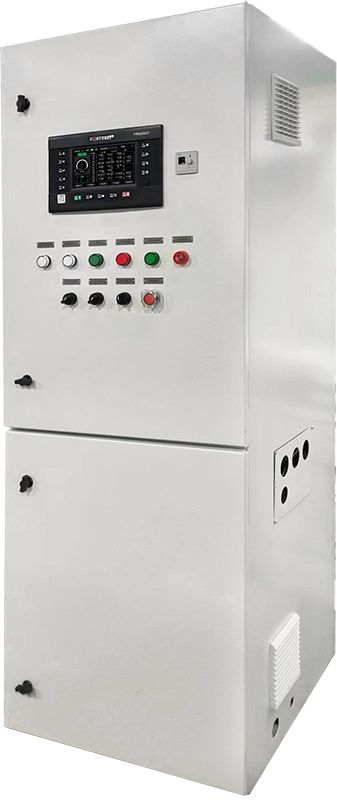

2. The control panel features: Normal/Maintenance, Manual/Automatic Louver, Louver Open/Close, Start, Stop, Mute, Reset, Local/Automatic, Emergency Stop Button, Power Indicator, Generator Indicator, Close Indicator, and Disconnect Indicator.
3. The control panel has fault self-diagnosis, battery detection, generator overcurrent protection, short circuit protection, phase loss protection, overvoltage protection, undervoltage protection, high frequency protection, low frequency protection, current imbalance protection, and timed start (inspection function).
4. Communication interfaces are not limited to RS485 and Modbus TCP interfaces; supports 104 protocol and satellite communication function.
The emergency diesel generator unit provides the necessary power for the yaw system and central control system of the wind turbine to operate normally in the event of an external power grid failure. This is to cope with extreme weather (such as typhoons), equipment failures, or other emergencies, protecting equipment and personnel safety and preventing further losses. To prevent power from being fed back into the grid, the circuit breaker automatically disconnects from the grid power supply and switches to the emergency diesel generator unit's power supply in the event of a grid power failure. To prevent mechanical overload of the wind turbine due to yaw system malfunction, the emergency diesel generator unit can start within a specified time when the wind turbine loses grid power.
7-inch color screen with adjustable backlight brightness, selectable Chinese and English display;
Adopting a dual-CPU architecture, with one dedicated CPU for data processing, improving data processing capabilities and reliability; the control box has an independent security control system, achieving independent protection for the engine;
Features real-time clock display, real-time alarm information display, and historical fault record display, facilitating maintenance and troubleshooting;
Protection parameter settings, output parameter settings, etc., can all be set on-site via the panel, convenient and quick;
Operating voltage: DC (18-36)V;
Operating conditions: Temperature (-25-+70)℃;
Dimensions (L*W*H): 580*603*1700mm;
