The remote control box, equipped with the FPSS8607-M marine engine control module, can be expanded to include multiple remote control panels.
Communicates with the engine control box via CANBUS bus.
Features remote data display and alarm display functions.
7-inch color screen with adjustable backlight brightness, selectable Chinese/English display.
Customizable button functions, equipped with an emergency stop button.

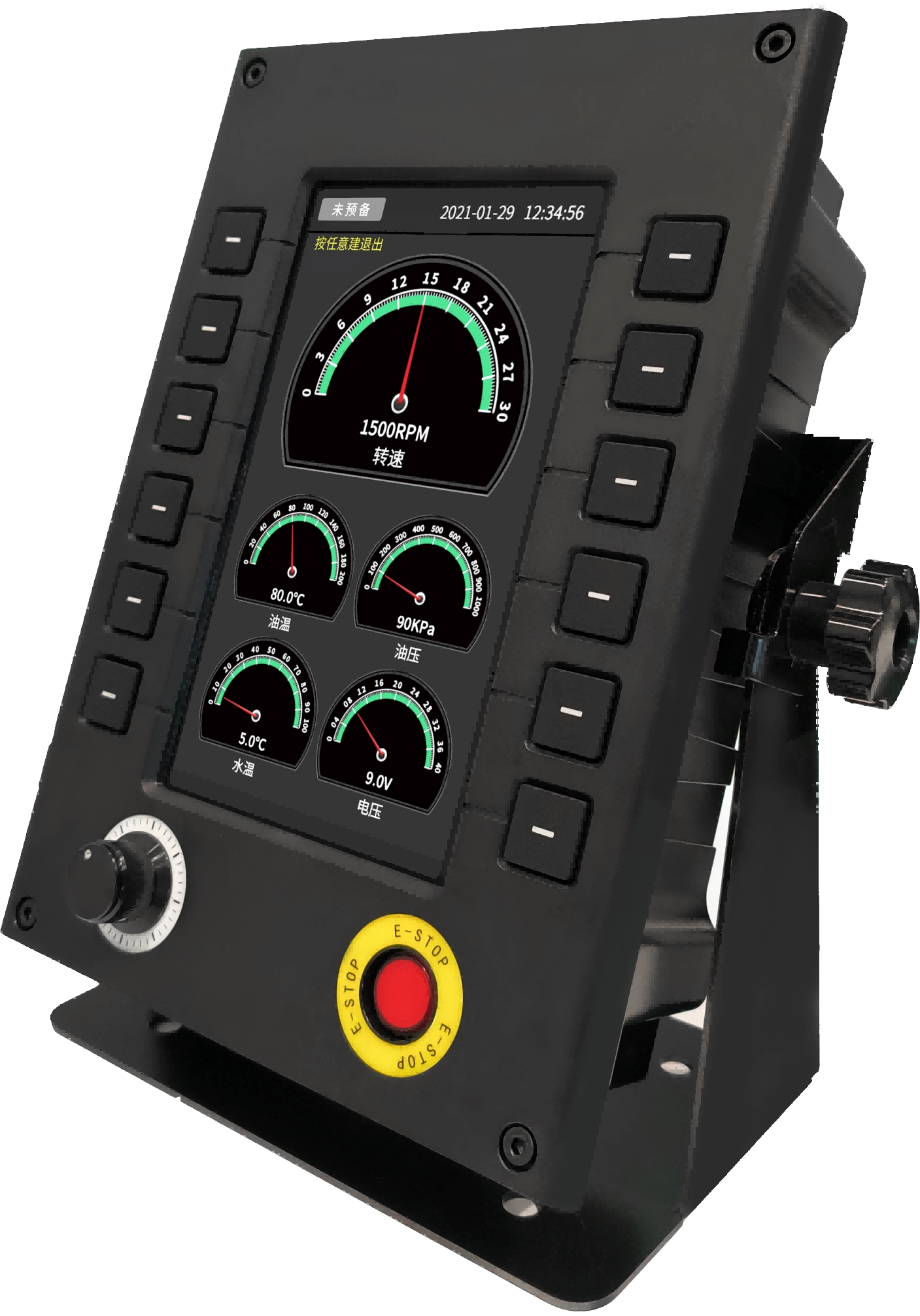

The MPRM1007 remote transmission system is characterized by high reliability, stability, small size, and convenient installation and maintenance compared to similar products. It is a relatively advanced mechatronic electronic instrument.
The MPRM1007 remote control instrument can read parameters such as engine speed, oil pressure, water temperature, oil temperature, battery voltage, and cumulative engine running time from the local control box via CAN or RS-485 communication, and can monitor and display these parameters in real time. When the local control box detects an alarm signal, the remote control instrument will simultaneously display the alarm. In remote control mode, the instrument can be used to start and stop the engine. Optional features include a cloud modem, GPS positioning, cloud monitoring, cloud services, and a global maintenance platform.
