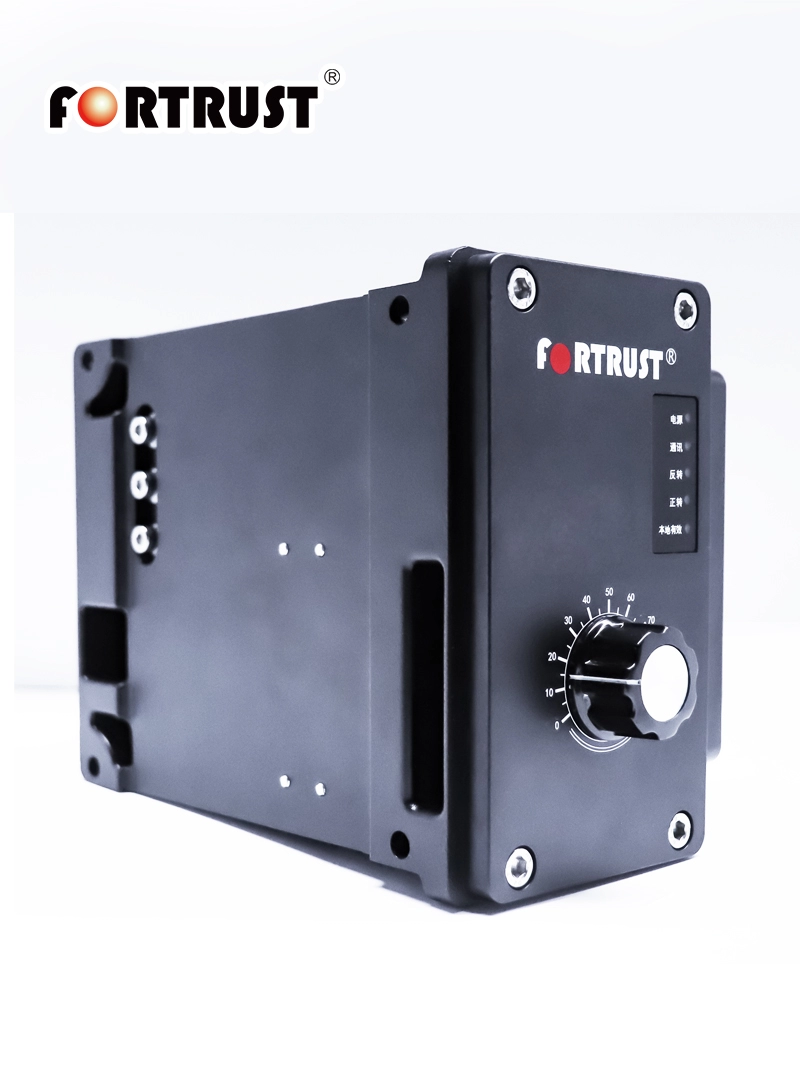

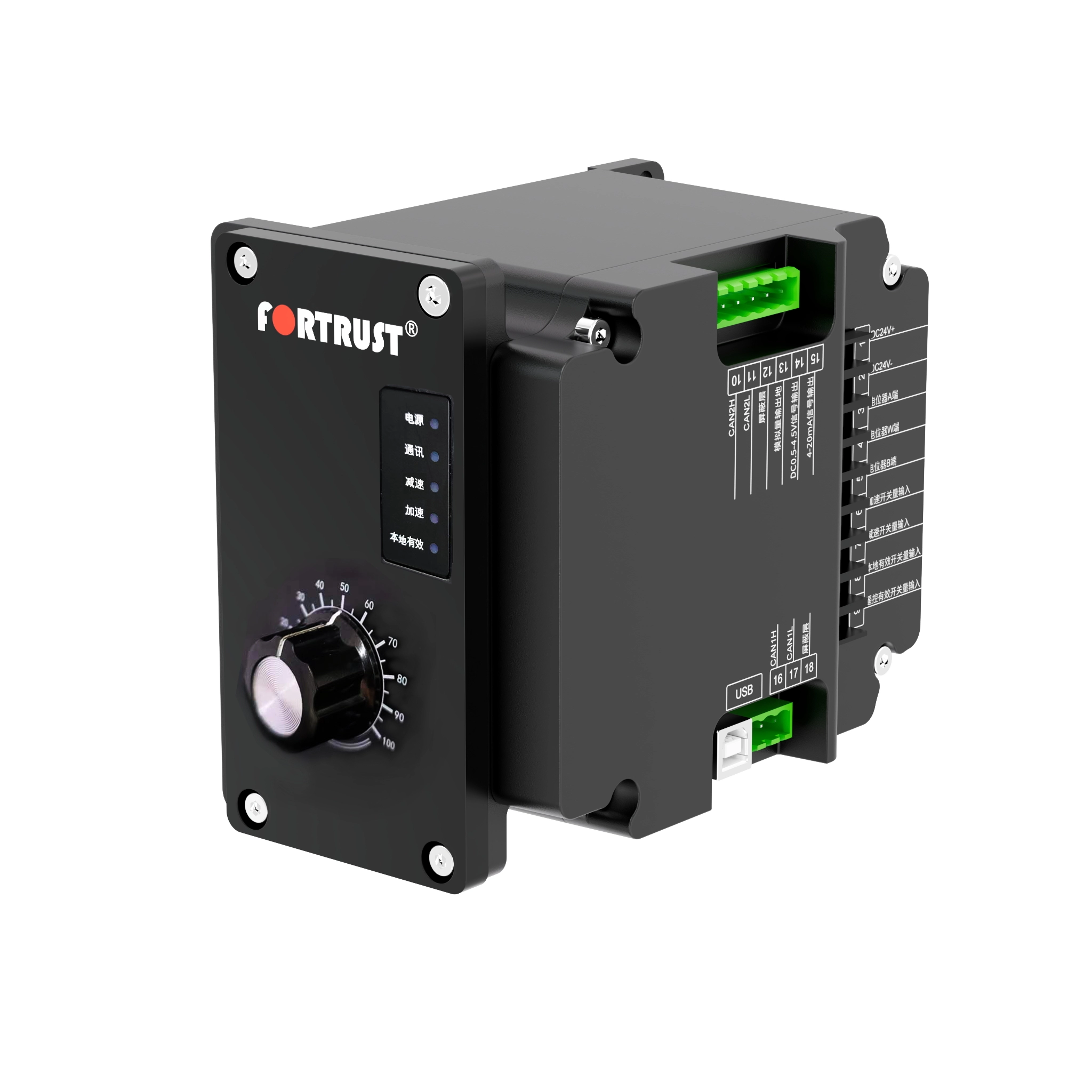

DECR1000 | Electronic control command device

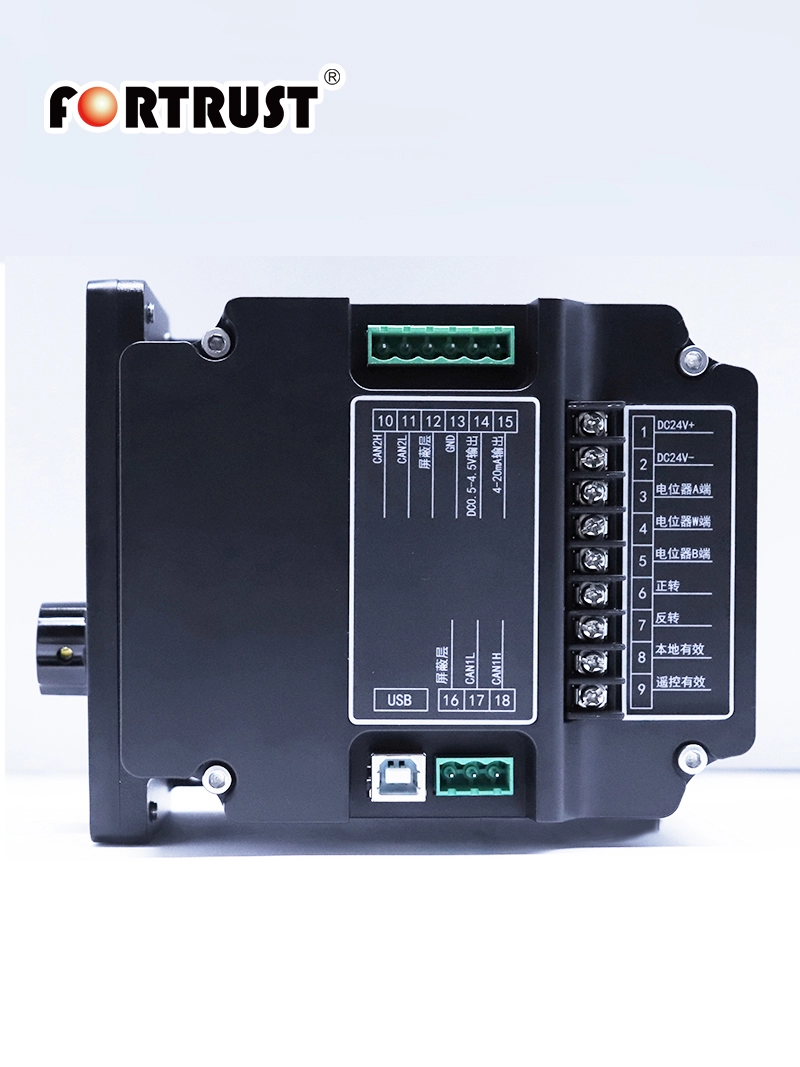

When adjusting the output resistance, dual control signals are used for adjustment, resulting in more stable and reliable adjustment. Current limiting controls the maximum output torque of the motor, preventing damage to the motor and potentiometer due to over-torque, thus enhancing safety and reliability. High-performance, wear-resistant potentiometers are selected for their long service life. It is compatible with electronic adjustment, manual adjustment potentiometers, and CAN command adjustment output. It supports embedded installation and base mounting within a cabinet. It supports three output modes: 4-20mA current output, 0.5-4.5V voltage output, and CAN2 command. It includes an indicator light output and a data calibration interface.

It features both switch signal and manual speed control modes;
