GEC3800 | Digital ESC

Name: GEC3800
Rating: 4.5 (100 reviews)

The GEC3800 series controllers are available in three models: GEC3802, GEC3804, and GEC3805.

The GEC3805 is designed for engine systems requiring a single closed-loop control.

The GEC3802 is designed for engine systems requiring a dual closed-loop control.

The GEC3804 is specifically designed for engine systems requiring a VP (Vibration Variable Interference) system.

Download Instructions

Online consultation

Overview
Features
Parameter
Download
Related Products
Online Consultation

Overview

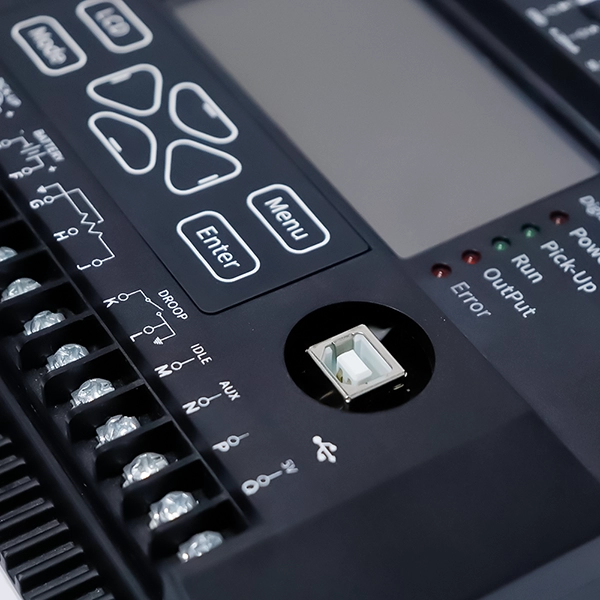

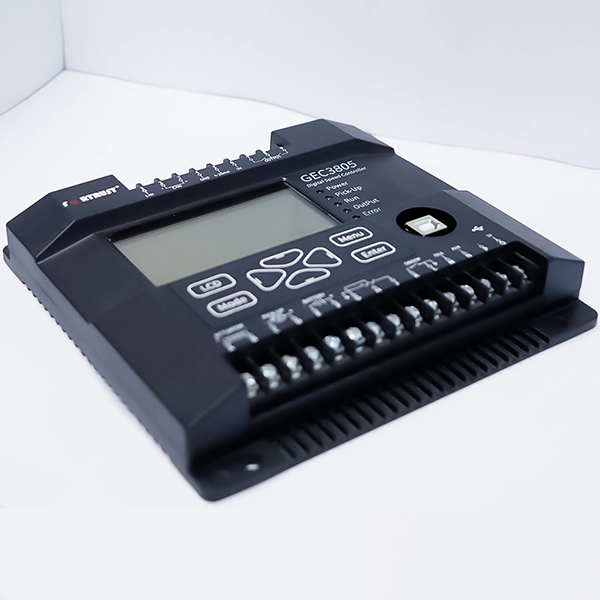

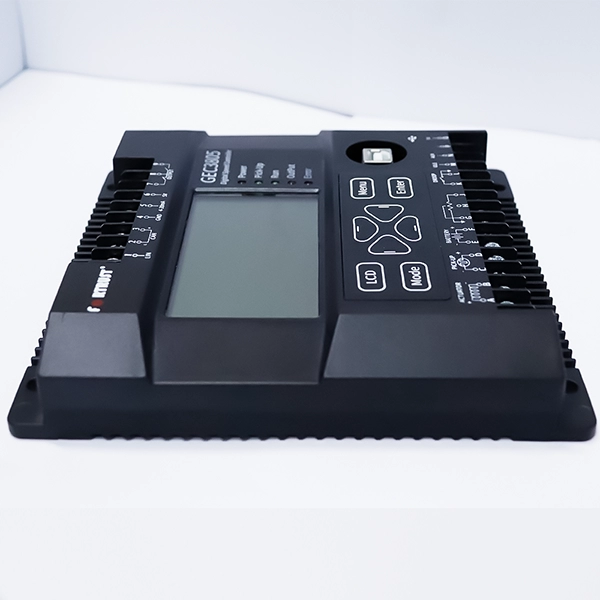

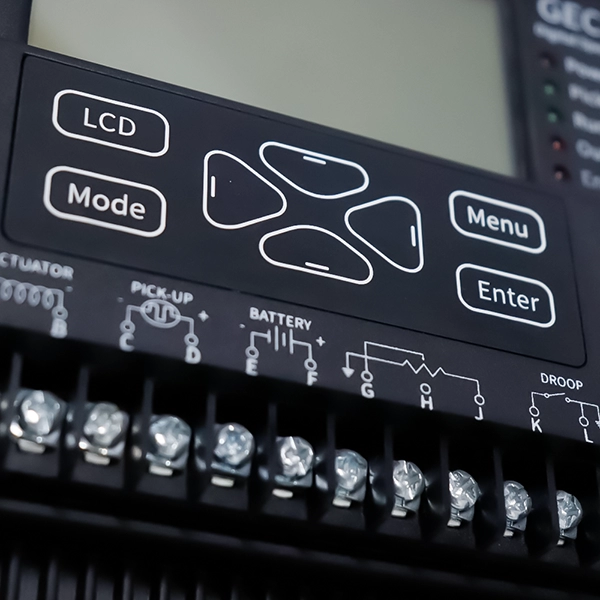

GEC3800 Digital ESC

LCD Graphical Interface Display

Provides a CAN communication interface for real-time communication with external devices

PID parameter adjustment and segmented PID calibration functions, allowing for individual calibration at different operating conditions

Features a display heating function, enabling normal operation in low-temperature environments

Features a WIFI hotspot function, allowing data communication with external devices via WIFI

Features

GEC3800 Series Digital Electronic Speed Controller

The GEC3800 electronic control system improves various engine performance indicators without requiring major modifications to traditional engines.

The controller, containing complex control circuitry, is the core of the entire control system. Its core component is a fast and efficient 32-bit microprocessor.

Compared to mechanical speed control systems, the system improves various engine performance indicators, with a response time T≤35ms;

Compared to analog electronic speed control, the system can implement flexible control strategies, such as: PID segmented control, two-stage automatic fuel quantity adjustment, parallel operation, full-range speed regulation, dual-frequency switching, alarm switch signal output, CAN communication, and WIFI connectivity.

Parameter

MCU	32-bit high-speed processing chip
Screen	LCD 132*64
Power supply voltage	DC12V/DC24V
Output	Two contact points (normally open/normally closed)
Communication	CAN(J1939)
	WIFI module (optional)
Enter	4~20mA,0~5V
Ambient temperature	-40 ～ +105℃
Operating humidity	＜95%
Protection level	IP20
