Used to control fire pump units, enabling automatic start-up and shutdown, data measurement, alarm protection, and "three-remote" functions (remote control, remote monitoring, and remote control).
Equipped with a large-screen LCD display, capable of displaying Chinese and English, the operating parameters of the engine and pump are clearly displayed on the screen. Operation is simple and reliable.

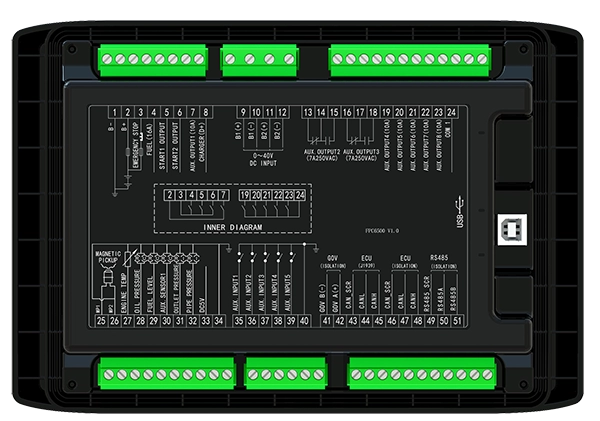

The FPC6500 fire pump unit controller is used to control fire pump units, realizing automatic start-up and shutdown, data measurement, and alarm protection functions for engine-driven fire pump units. The controller also has a CANBUS (SAE J1939) interface, which can control various electronically controlled or non-electronically controlled engine pumps. The FPC6500 fire pump unit controller uses a large-screen LCD display that can display Chinese and English. Engine and pump operating parameters are clearly displayed on the screen, making operation simple and reliable. The FPC6500 fire pump unit controller uses 32-bit microprocessor technology, realizing precise measurement, setpoint adjustment, timing, and threshold setting functions for various parameters. Most parameters can be adjusted from the front panel of the controller, and all parameters can be monitored and adjusted using a PC via the module's 485 or USB interface. Its compact structure, simple wiring, and high reliability make it widely applicable to various types of engine pump control systems. Users can connect via Wi-Fi to view curves for fault diagnosis; users can also connect via Wi-Fi and modify calibration in the Wi-Fi-APP, which is simple and quick; if users are unsure how to modify it, service personnel can assist with remote calibration.
