I. Project Background: The Essential Need for Backup Power in High-Altitude Operations

A mining company is located in a high-altitude region at an altitude of 2300 meters. Its core production equipment relies on a stable power supply. Due to occasional fluctuations in the local power grid, the company needs to configure a 2MW high-voltage generator set as a backup power source to cope with the risk of sudden power outages. In this scenario, the equipment needs to overcome the special operating conditions of low air pressure and large temperature differences between day and night at high altitudes. The high-voltage generator set's incoming line cabinet, as a core component for power switching and protection, has its adaptability and reliability becoming critical to the project.

II. Core Requirements: Precise Matching of Plateau and Generator Parameters

Altitude Adaptability: The low atmospheric pressure environment at an altitude of 2300 meters can easily lead to a decrease in the insulation performance of electrical equipment, requiring the incoming line cabinet to have a reinforced insulation design;

Voltage and Power Matching: Adaptable to 10.5kV high voltage level, meeting the current carrying capacity and power transmission requirements of the 2MW generator set;

Emergency Reliability: The backup power supply needs to switch quickly in the event of a grid power outage, and the incoming line cabinet needs to have precise protection and control functions to avoid conflicts between the generator set and the grid;

**Environmental Tolerance:** Adapted to high-altitude environments with diurnal temperature variations ranging from -20℃ to 40℃, and characterized by dryness and high dust levels.

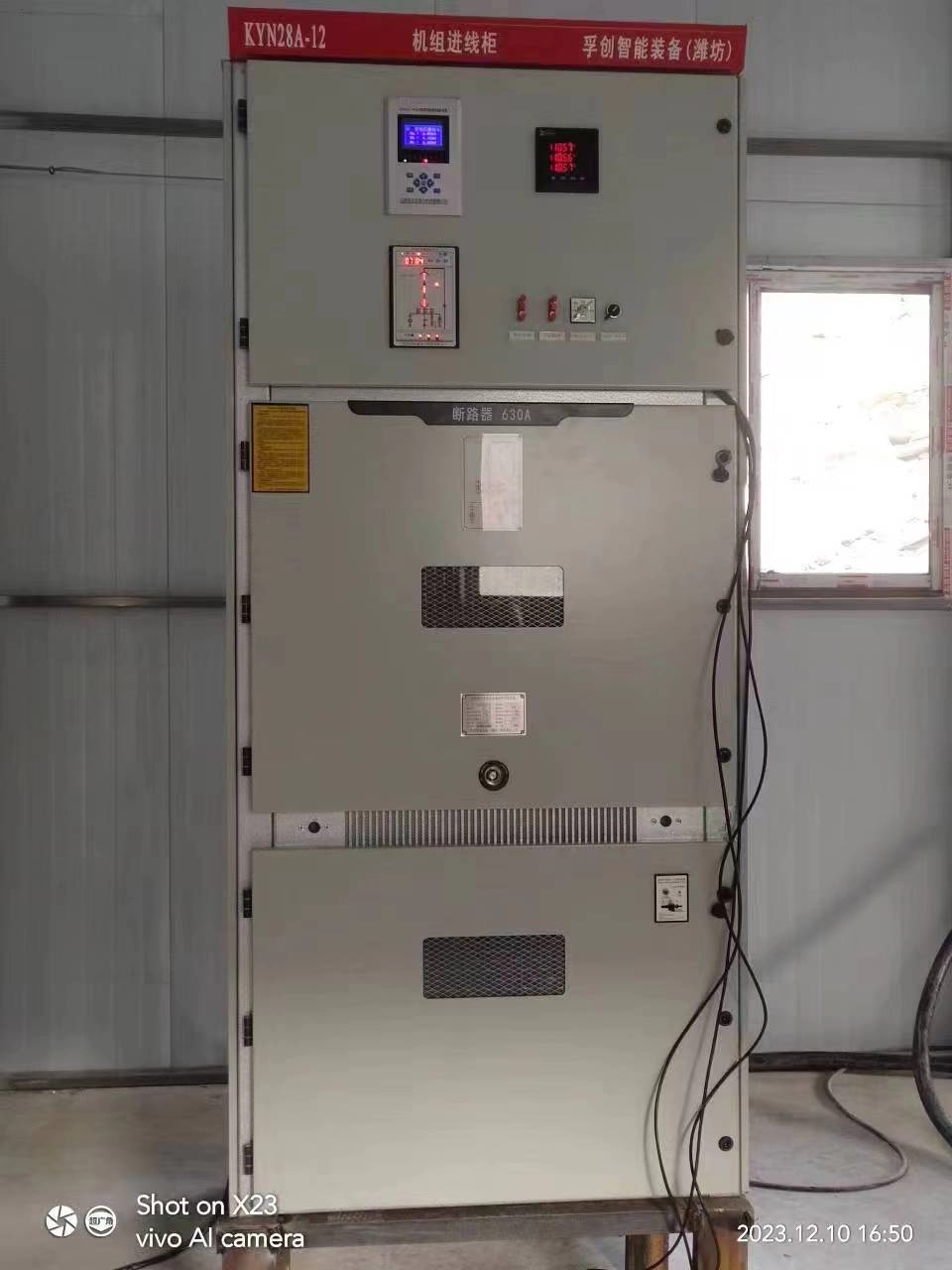

III. Fuchuang Solution: Technological Breakthrough in Customized High-Voltage Incoming Cabinets

To meet project requirements, the Fuchuang team provides customized high-voltage generator unit incoming cabinets. Key technological highlights are as follows:

High-Altitude Insulation Optimization: Utilizing H-class insulation materials enhances the insulation strength of internal electrical components. Simulated low-pressure environment testing at an altitude of 2300 meters ensures insulation performance meets GB/T 11022 standards;

Precise Parameter Matching: Cabinet rated voltage 10.5kV, rated current 1250A, short-circuit breaking current... 31.5kA, perfectly adapted to the output characteristics of a 2MW high-voltage generator set, ensuring stable power transmission;

Intelligent Protection and Switching: Integrated microprocessor protection device, supporting multiple protection functions such as overcurrent, overvoltage, and short circuit. It is also equipped with a fast vacuum circuit breaker to achieve millisecond-level safe switching between the power grid and the generator set, avoiding damage to the equipment from inrush current;

Environmental Adaptability Design: The cabinet adopts an IP4X protection rating, equipped with a constant temperature heat dissipation module and dust filtration device, effectively resisting the effects of high-altitude temperature differences and dust, ensuring long-term stable operation of the equipment.

IV. Implementation Process: Professional Commissioning and Installation, Ensuring Success on the First Attempt

Preliminary Survey: The Fuchuang technical team visited the project site in advance to measure environmental parameters such as altitude, temperature, and humidity. Combined with the customer's generator set parameters, they refined the cabinet customization plan.

Production and Testing: After completing the production of the incoming line cabinet according to the customized plan, a full-load test was conducted in the factory simulating high-altitude working conditions to verify the reliability of insulation, protection, and switching functions.

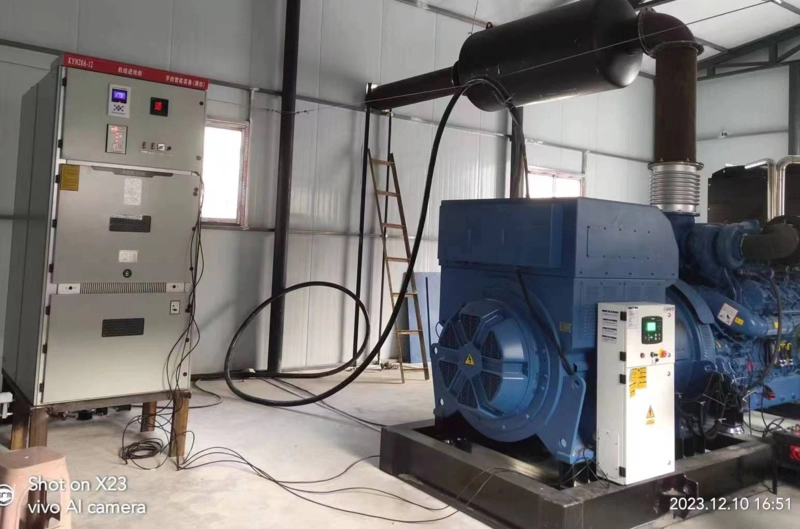

On-site Installation and Commissioning: A professional high-altitude construction team was assembled to overcome the difficulties of high-altitude operations and efficiently complete the connection and installation of the incoming line cabinet with the generator set and power grid system. During the commissioning phase, three simulated power outage scenarios were conducted to verify that the backup power supply switching response time was ≤0.5 seconds, and all parameters met the design standards.

Acceptance and Delivery: The project was completed and commissioned within the agreed timeframe. After joint acceptance by the customer and a third-party testing agency, the insulation performance, current carrying capacity, and protection functions of the incoming line cabinet all met the standards, and it was officially put into use.

V. Project Achievements: Stable Operation, Highly Recognized by Customers

Reliability Assurance: Since its commissioning, the Fuchuang high-voltage generator unit's incoming line cabinet has successfully withstood two grid fluctuations, with rapid backup power switching, preventing production interruptions and ensuring stable daily production capacity for the company;

Operating Condition Adaptability: In a high-altitude environment of 2300 meters, the cabinet's operating temperature remained stable within the range of -15℃ to 35℃, with no abnormalities in insulation performance and excellent dust protection;

Customer Evaluation: "The Fuchuang incoming line cabinet precisely matches the high-altitude operating conditions and the unit's needs. Its professional and efficient commissioning and installation resolved our core concerns about backup power, providing a solid guarantee for production continuity." — Company Equipment Management Manager

VI. Case Summary

This project fully demonstrates Fuchuang's customization capabilities and technical strength in the field of high-voltage electrical equipment. For special operating conditions such as high-altitude areas, Fuchuang can provide customers with reliable power solutions through environmentally adaptable design, precise parameter matching, and professional implementation services. In the future, Fuchuang will continue to deepen its expertise in specific high-voltage equipment scenarios, creating value for more industry customers.
